VAP VIDEO/AUDIO PATCHBAY SERIES
VJHD*75TX
VAPK3HD*75T

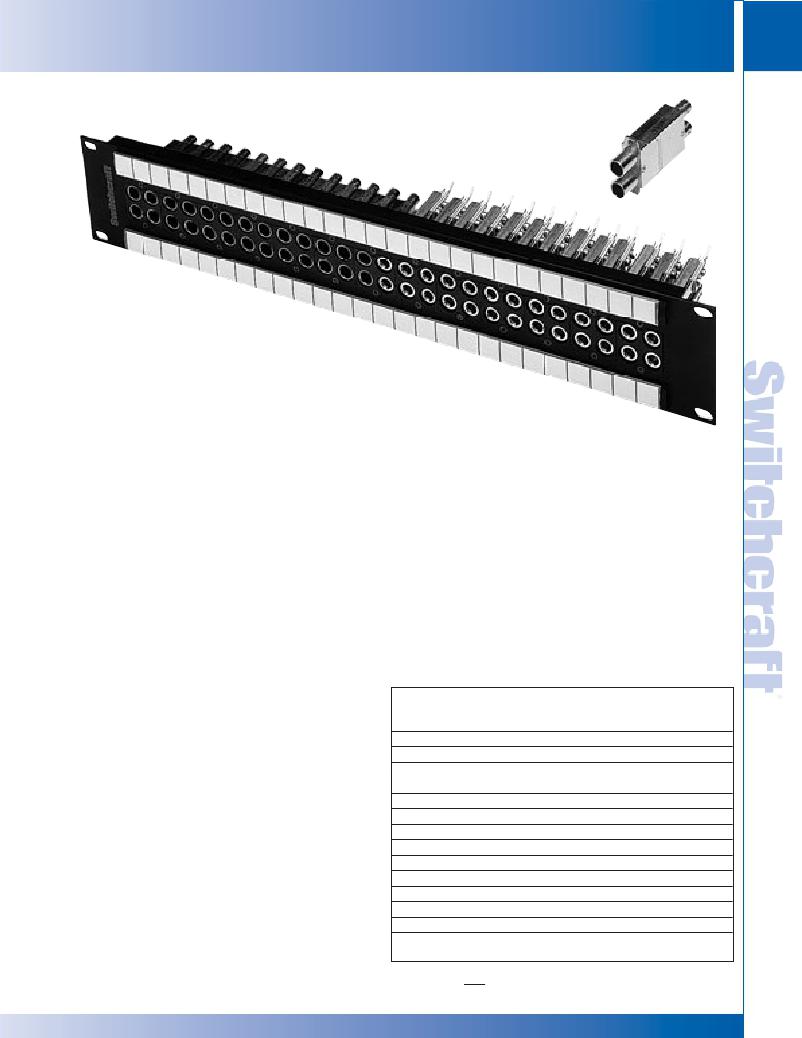

The VAP Series combines audio and video in one convenient
patchbay. Standard versions consist of 13 video jacks and 26
long-frame audio jacks into one unit. Options include HD Series
video jacks which are rated from DC to 2.4GHz or SD Series
rated from DC to 1.5GHz. Both come in either terminated or
non-terminated jacks. The MT Style audio jacks all have
nickel-plated steel frames and gold-plated switching contacts.
Flared terminals make soldering easier. All audio jacks are
T,R,S, TN, and RN. Individual modules are useful for custom
configurations.
199
FEATURES AND BENEFITS
? Combines 13 video jacks and 26 long-frame
audio jacks into one patchbay
? Available with either HD Series or SD Series
video jacks
? All audio jacks are nickel-plated with steel frames
and gold-plated switching contacts
? Audio modules consist of 4 YMT334BN jacks,
video modules consist of 2 dual video jacks
VIDEO JACK SPECIFICATIONS
ELECTRICAL
Rated Bandwidth: 2.4 GHz (HD), 1.75 GHz (SD)
Characteristic Impedance: 75 ohms
Return Loss: Better than –15 dB
Insertion Loss: Better than –.5 dB
Grounding Contacts:
HD Series - Copper alloy, gold plated
SD Series - Copper alloy, nickel plated
Insulators: Thermoplastic, UL 94V-0 rated
ENVIRONMENTAL
Operating Temperature: – 40oC to 65oC
Storage Temperature: – 55oC to 85oC
Thermal Shock: Per MIL-STD-202, Method 107
Moisture and Humidity: Per MIL-STD-202, Method 106
Ordering Information
Part Type of
Number Jack Height Description
Contact Resistance: Less than 20 milliohms
Termination Resistance: 75 W, ±1%
Center Conductor: Accepts .090 pin diameter
MECHANICAL
Mechanical Shock: Per MIL-STD-202,
Method 213, Test condition I
Vibration: Per MIL-STD-202, Method 201
Insertion Force: 12 lbs. maximum
Withdrawal Force: 3 lbs. minimum
Life Cycle: 30,000
VAPK1HD*75T
VAPK1HD*NT
VAPK1SD*75T
VAPK1SD*NT
VAPK3HD*75T
VAPK3HD*NT
VAPK3SD*75T
VAPK3SD*NT
Modules
VMAFN
HD 1.75" Terminated
HD 1.75" Non-terminated
SD 1.75" Terminated
SD 1.75" Non-terminated
HD 3.5" Terminated
HD 3.5" Non-terminated
SD 3.5" Terminated
SD 3.5” Non-terminated
MT 4- YMT334BN jacks
MATERIAL
Housing: Zinc alloy, nickel plated
Center Contacts: Copper alloy, gold plated
Switching Springs: Copper alloy, gold plated
VMVHD*75T HD 2- HD terminated jacks
VMVHD*NT HD           2- HD non-terminated jacks
VMVSD*75T SD 2- SD terminated jacks
VMVSD*NT SD 2-SD non-terminated jacks
*Add “N” for non-normalled version
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
